DAS (8)Vantec 20A y (4)Vantec 218A Paquete

Este paquete de DAS Audio incluye:

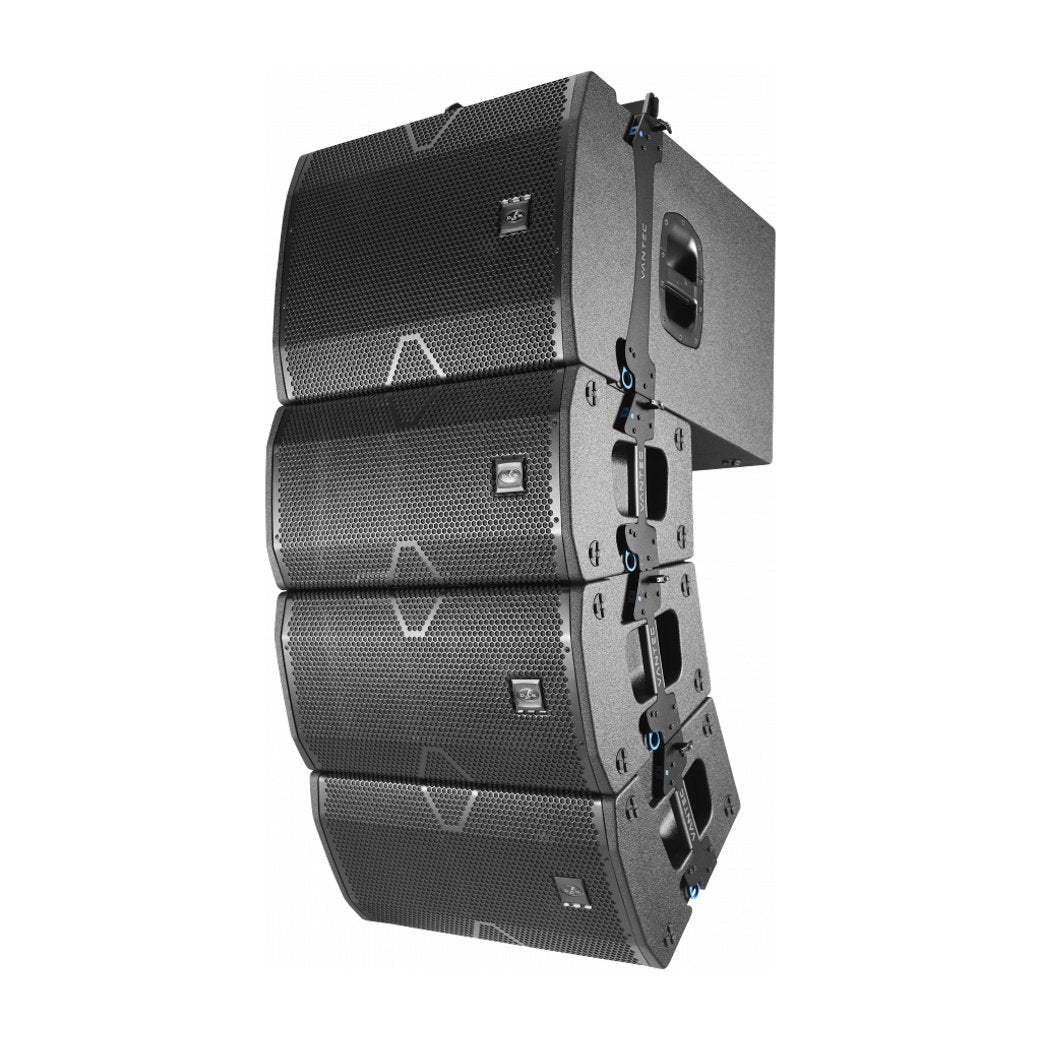

• (8)DAS Vantec 20A Line Array: VANTEC 20A
• (4)DAS Audio Vantec 218A Subwoofer Activa: VANTEC-218A
• (2) Estructura para Suspender VANTEC-20A (max 5 pcs.), Negro AX-VT20

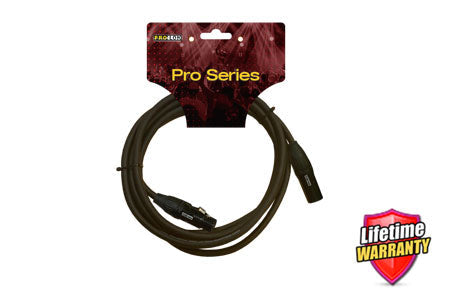

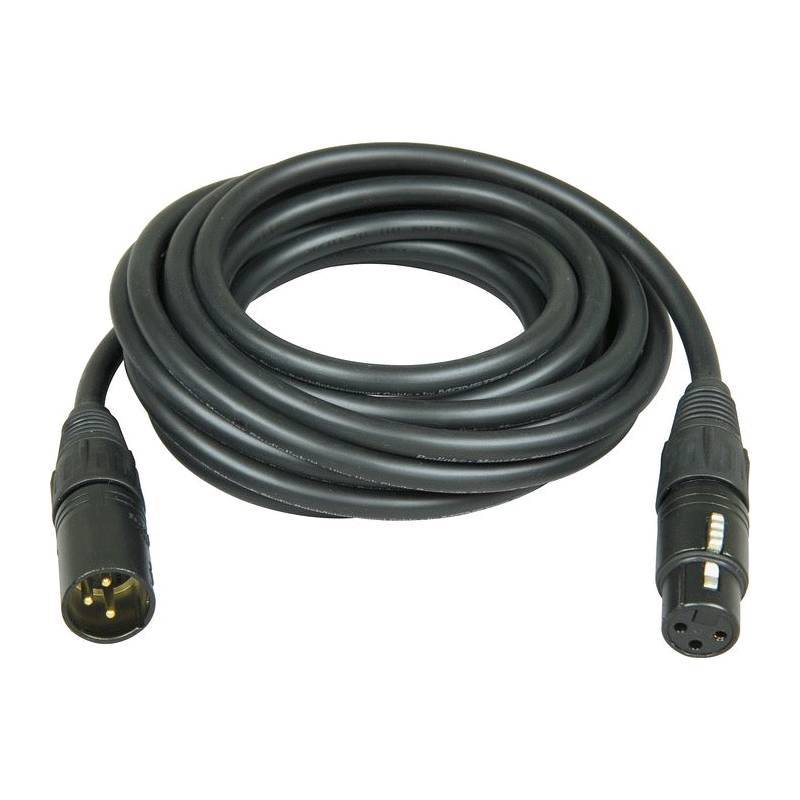

• (2)PROS 30' Cable de Microfono
• (8) PROS3 3'Cable de Microfono

ESPECIFICACIONES

Rendimiento

• Rango de Frecuencia (-10 dB): 63 Hz – 20 kHz
• Pico Maximo SPL at 1 m: 135 dB

Connectores Electronicos

• Nominal Amplifier Power (continuous): 750 W
• Nominal Amplifier Power (peak): 1500 W
• Input Impeadance: 20 kohms
• Input Sensitivity: Line: 3 V (+12 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• Audio Signal Loop Thru Connector: 1 x Male XLR
• Control: DASlink™/DAScontrol™
• AC Input Connector: powerCon NAC3FCA
• AC Output Connector: powerCON NAC3FCB
• Operating Range: 90-250 VAC
• Current Draw 115 V: 3.0 A
• Current Draw 230 V: 1.5 A

Cercamiento

• Construcción del recinto: madera contrachapada de abedul

• Geometría del recinto: trapezoidal

• Aparejo: Sistema de aparejo cautivo

• Acabado: Pintura ISO-flex

• Color: Negro

• Dimensiones (Alto x Ancho x Fondo): 335 x 625 x 440 mm/ 13.2 x 24.6 x 17.3 pulgadas

• Peso neto: 28.6 kg (62.9 lb)

Componentes

• Controlador LF: 12F4C
• Controlador HF: M-60
• Bocina/guía de ondas: BC-915

Envio

• Dimensiones de la caja (alto x ancho x profundidad): 490 x 730 x 490 mm / 19,3 x 28,7 x 19,3 in
• Peso de Envio: 29,0 kg ( 63,8 lb )

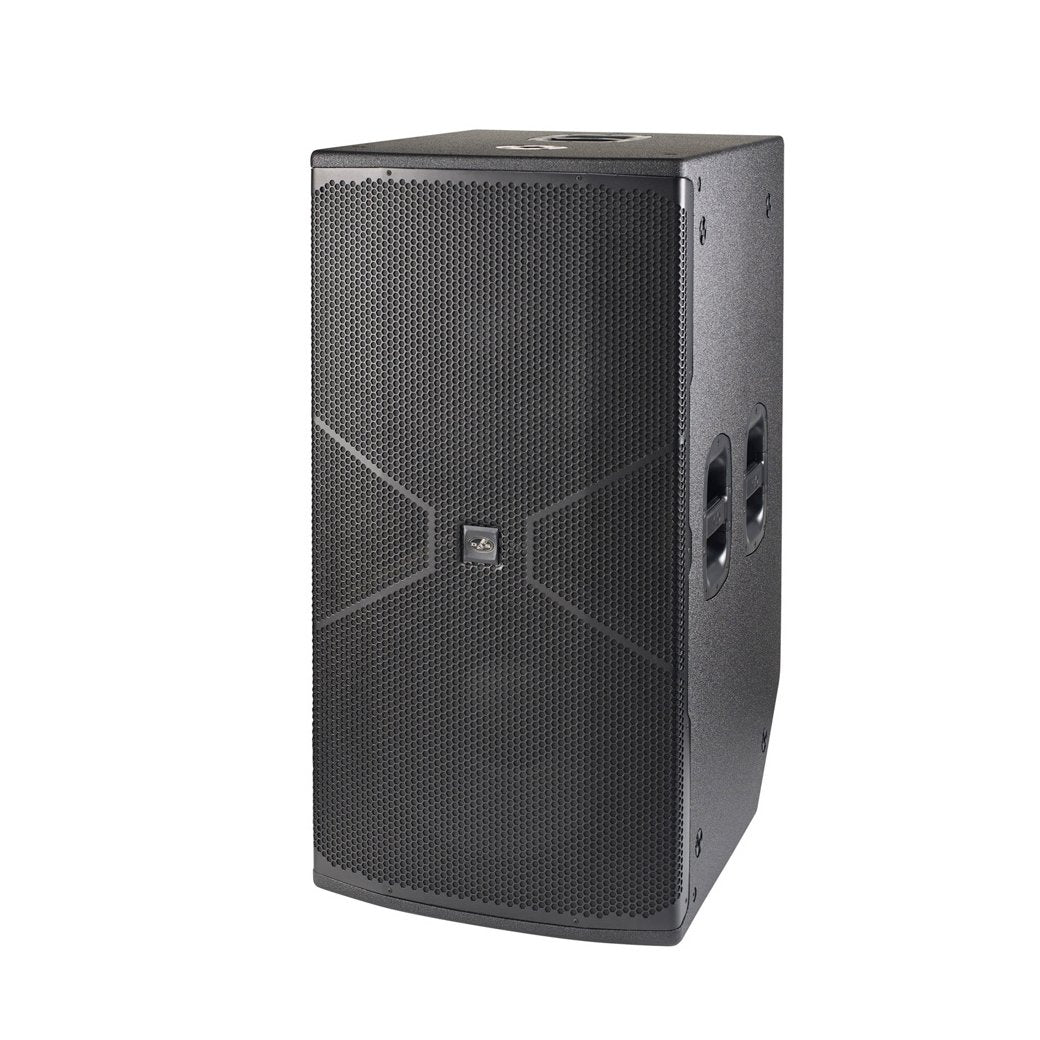

The VANTEC-218A is a powered bass subwoofer system designed to provide extended bass response for the VANTEC full range cabinets. A powerful 4000 Wpeak amplifier drives dual DAS 18LX-long excursion bass loudspeakers incorporating 4″ voice coils and massive magnet structures provide high power handling and impressive output.

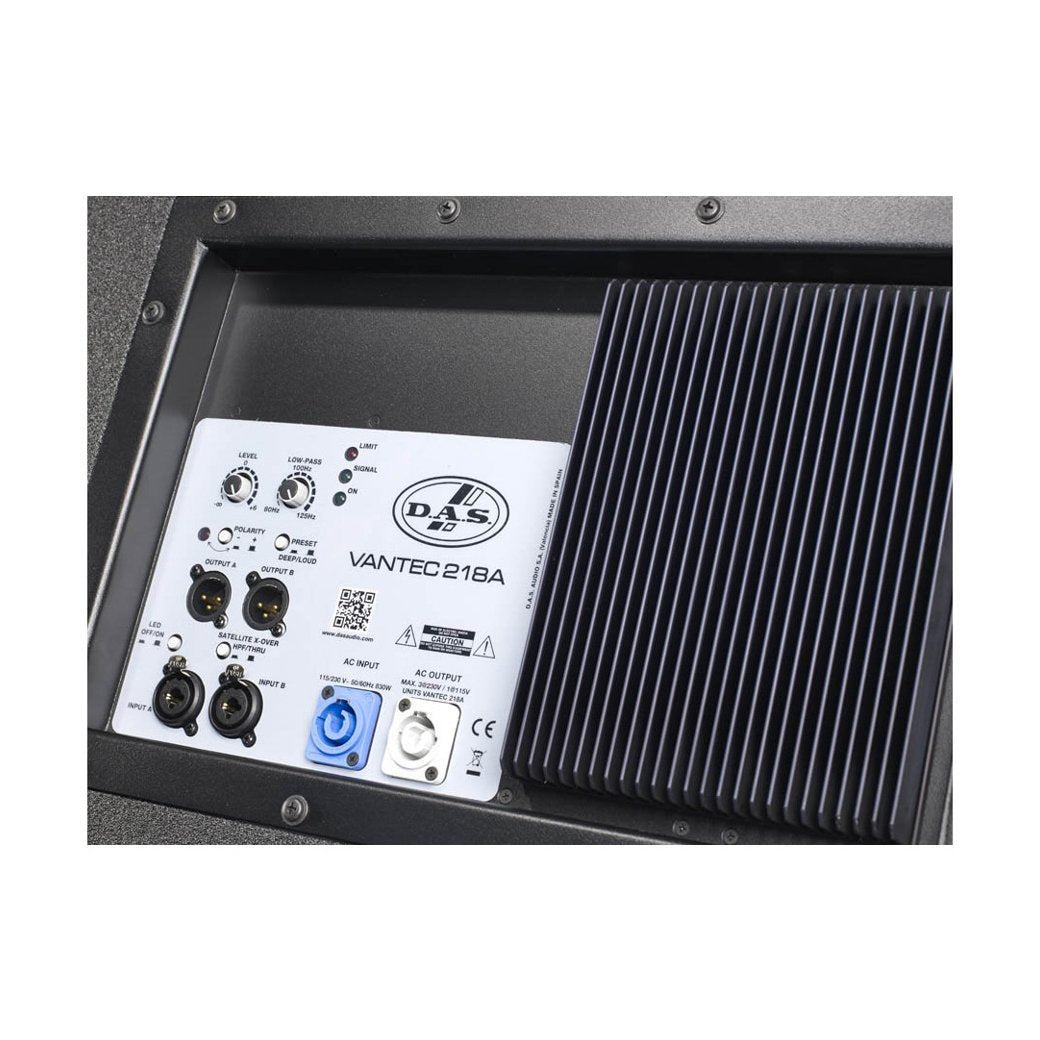

The VANTEC-218A is powered by a Class D amplifier with switch mode power supply, digital signal processing and a 4000 Wpeak power rating. Signal processing for the Vantec-218A is accomplished by way of a powerful DSP providing unparalleled control over critical signal parameters. Users can select configurations by way of a rotary knob interface and LCD screen on the rear of the cabinet. A range of presets and low pass filters allow the VANTEC-218A to be matched acoustically with the Vantec-full range cabinets.

The compact VANTEC-218A cabinet is manufactured using birch plywood and is finished with a coating of the highly resistant ISO flex black paint for durability. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier. The powder coated steel front grille protects the DAS components.

ESPECIFICACIONES

• Self-powered subwoofer system
• 4000 Wpeak Class “D” amplifier
• Presets EQ: Deep, Loud
• Filtered satellites outputs
• Gain control, polarity inverter
• Front logo switch on/off
• Flying points

DATOS TECNICOS

• Amplificador de potencia nominal LF: 4000W pico Clase D

• Respuesta de frecuencia (-10 dB): Alto: 35 Hz - 125 Hz; Profundo: 30 Hz - 125 Hz

• SPL pico nominal a 1 m: 140 dB

• Material de la carcasa: madera contrachapada de abedul

• Color/Acabado: Negro/Pintura ISO-flex

• Conectores: ENTRADA de audio: 2 x XLR hembra; Audio en bucle: 2 x XLR macho;
• ENTRADA DE CA: powerCON; SALIDA CA: powerCON

• Tensión Nominal: Red Universal; 6,0 A, 115 V, 50 Hz/60 Hz; 3,0 A, 230 V, 50 Hz/60 Hz

• Dimensiones (Al x An x Pr): 106 x 54 x 67 cm; 41,7 x 21,3 x 26,4 pulgadas

• Peso: 72 kg (158,4 libras)


 SKU: AX-VT20

Estructura para Suspender VANTEC-20A (max 5 pcs.), Negro
